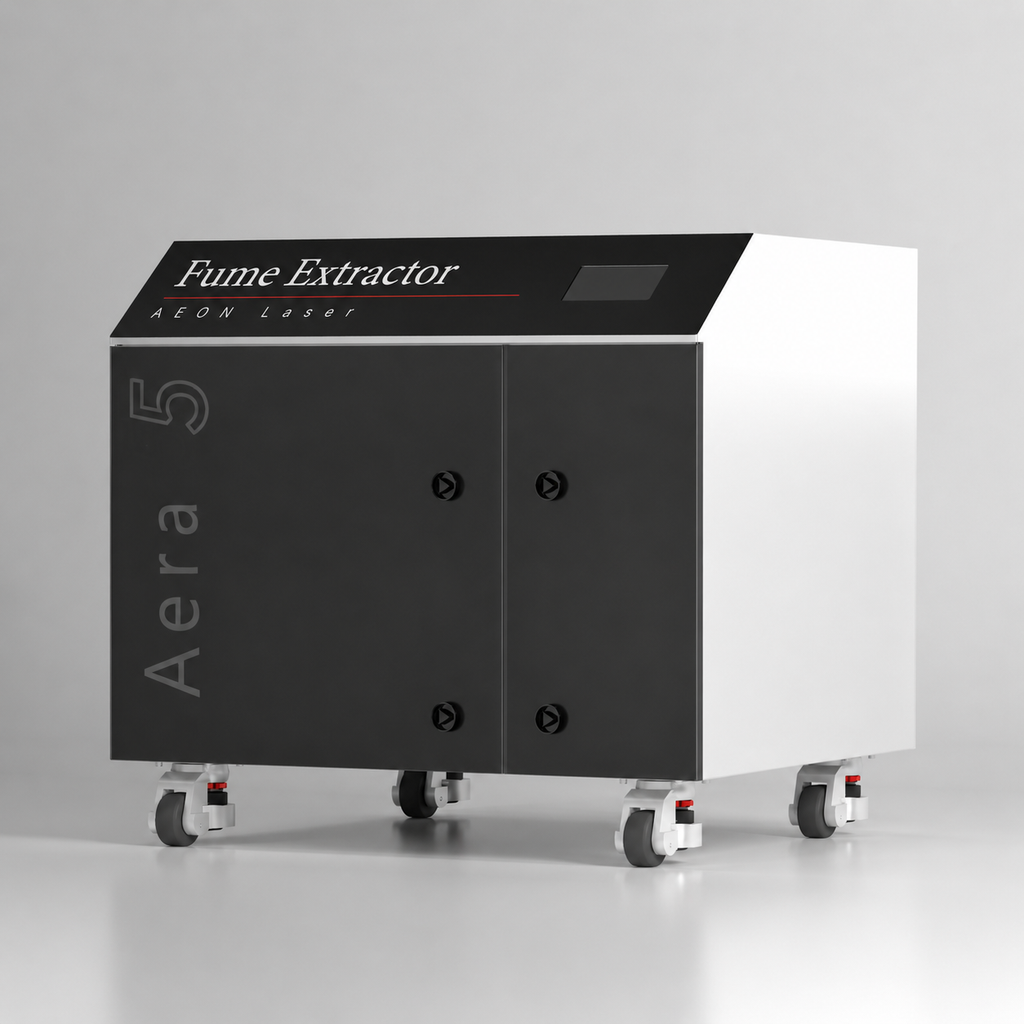

Aera 5 Fume Extractor
Machine data
Specifications
30"
36"
28"
243 lbs
Real-time monitoring for PM2.5, VOCs, and O₃
Instantly visualize exhaust quality and ensure effortless
environmental compliance

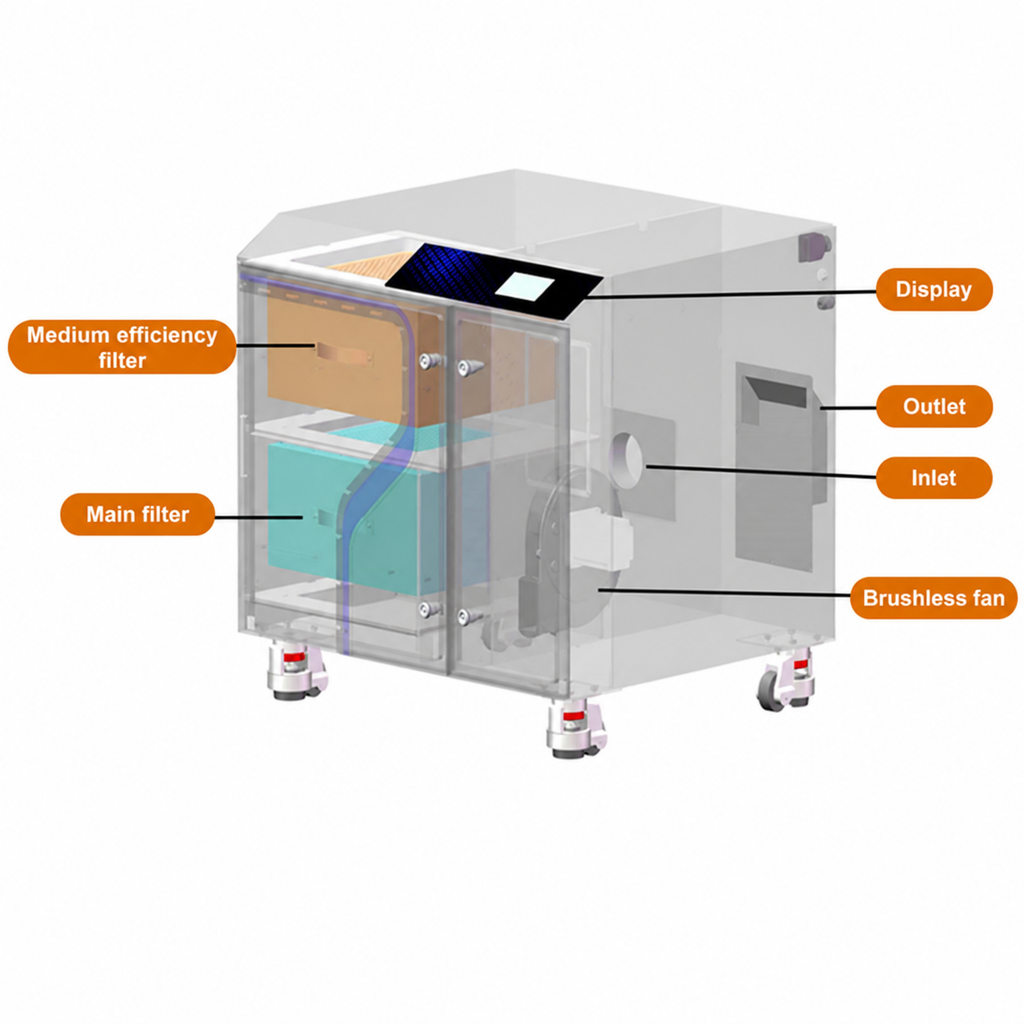

Accurately monitors each filter layer, provides timely replacement alerts, and helps eliminate unplanned downtime.
Automatically shutdown when temperature or humidity exceeds limits preventing fire risk and filter damage.
500 m³/hr (35 ft³/hr)
-10000Pa (-1.45psi)
< 60dBA
120V (60 hz) Standard US Grounded
1.1kw
20 amp
F9 Deep Pleat (95%@0.9um, Surface Media area 12m² - 30m²)
H14 Deep Pleat (99.997% @0.3um) and Activated Carbon
Technical FAQ
Engineer-level questions
What's the recommended ventilation?
The included blower handles a standard 4-inch duct run up to 20 feet. Long runs or shared ducting should use a stronger inline fan — see the power & ventilation PDF for sizing.
What electrical service does it need?
Standard 120V/15A in North America for 50-100W machines; 240V/15A for 150W. The full spec sheet lists exact draw and breaker recommendations.
Is a chiller required?
An external water chiller is recommended for 80W and above to keep the tube within its optimal temperature range and maximize lifetime. We sell matched chillers as accessories.
What file types does it accept?
LightBurn imports AI, SVG, DXF, PDF, PNG, JPG, BMP, and more. RDWorks supports a similar list. There's no proprietary file format requirement.
Need a custom configuration?
Talk to our engineering team
Special voltage, custom laser tube combinations, integration within existing production — tell us what you need and we'll quote the exact build.
