Four-side pass-through
Open front, back and sides. Feed long stock up to 2.76 in thick front to back, or 7.09 in through the sides.
MIRA X RF CO₂ Laser Engraver & Cutter
$17,999.00
Sale price
$17,999.00
Regular price
Skip to product information
MIRA X Series · 150W RF
MIRA X RF CO₂ Laser Engraver & Cutter

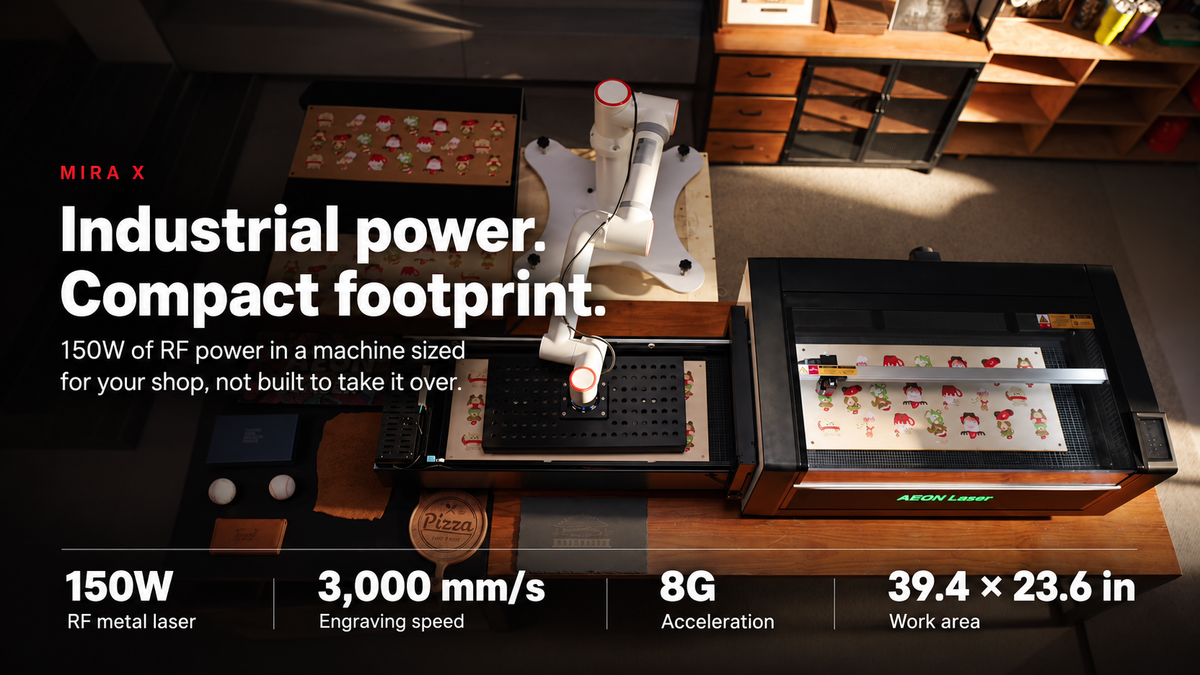

Industrial RF power, print to cut and AI Powered VisionFlow Automation in one compact, fully enclosed machine.
$17,999.00
Sale price
$17,999.00
Regular price
Shipping calculated at checkout.
- 150W RF metal laser tube, refillable, rated for about 20,000 hours
- 39.4 × 23.6 in work area with four-side pass-through
- Print to cut with three-camera VisionFlow registration
- Built-in compressor chiller, 190W exhaust and 60W air assist
Freight shipping: $1,520. Delivered to your door.
Not sure it's the right fit?
Book a free Laser Fit Call →
2-Year
US-Based Warranty
Class 1
Fully Enclosed
US Sales
& Support
$820K+
Backed on Kickstarter
At a Glance
Six Reasons Shops Choose MIRA X
AI Powered VisionFlow Automation
Print it. Load it. Cut it.
Print your graphics on any printer, load the sheet, and MIRA X finds the registration marks for you. Two lid cameras map the bed, then the CCD camera on the laser head locks onto each mark so every cut lands on the line.
01
Print
Add registration marks to your file and print.
02
Load
Place the printed sheet anywhere on the bed.
03
Detect
VisionFlow finds every mark automatically.
04
Cut
The laser contour cuts exactly on the line.
Power, speed, size
150W RF
Power that cuts in fewer passes
A 150W RF metal tube brings industrial cutting power to a compact machine, with a fine beam that still holds small detail.
Hyper-speed. Micro-precision.
3,000 mm/s with 8G acceleration
Engraves fast without losing detail, down to 2.5 pt text.
Expanded workspace
Room for real batches
A 39.4 × 23.6 in bed fits full trays of product or large single pieces.
Batch Production
One click. Every piece.
AI Powered VisionFlow Automation recognizes repeated parts on the bed and places your design on every one in a single click. No jigs, no hand alignment, no wasted blanks.
- Batch fill matches and positions repeated designs automatically
- Run 50, 100 or 500 pieces with the same setup
- PLC-ready port for automated production lines when you grow into it
Built to Grow with Your Shop
Long stock. Many tumblers. One machine.
HexaTurn multi-position rotary
The optional HexaTurn holds up to six tumblers or workpieces at once, so drinkware runs in batches instead of one at a time.
Built for Production
Engineered to run all day
The parts that decide whether a laser keeps up with real orders, built in from the start.
Ball-screw Y axis
Dual ball screws on Y and a synchronous belt on X hold accuracy at full speed.
Tool-free optics
Magnetic lens mount and tool-free mirrors. Clean or swap optics without re-aligning the beam.
Dual-zone ventilation
Two exhaust zones plus high and low pressure air assist for clean, char-free edges.
5200
Compressor chiller, Built in
Built-in chiller
No external chiller, no extra plumbing on your bench.
Touchscreen control
Run and monitor jobs from the full-touch control panel.
Works with your software
EZMaker and RDWorks included, LightBurn compatible. Import from CorelDRAW, Illustrator and AutoCAD.
Applications
What will you make?
Signs, drinkware, leather goods, gifts and production parts, on the materials your customers ask for.
Wood
Acrylic
Leather
Paper & cardboard
Rubber
Fabric
Foam
Glass*
Stone*
Ceramic*
*Surface engraving
The Laser Source
Why an RF Metal Tube
Glass tubes cost less up front. RF tubes pulse faster, hold a finer beam for detail work and last about twice as long. When the gas runs out, you refill the tube instead of replacing it.
| MIRA X RF metal tube | Typical DC glass tube | |
|---|---|---|
| Rated life | About 20,000 hours | About half as long |
| End of life | Refill and keep running | Replace the tube |
| Beam | Thinner beam, finer detail | Wider beam |
Proven in the Field
Makers are already running the MIRA X Series
$820K+
Backed on Kickstarter
150W Aeon Mira X Is Here And It Has AUTOMATION!
Print to Cut, Robot Arm, Multi-Cup Rotary... WHAT?!
Is the AEON MIRA X the Real Deal?
Built for Real Production
Made by AEON, supported in the US
MIRA X is built on AEON's own production line, with US-based sales, support and parts behind it.
The MIRA X Series
Find the Right MIRA
Three machines, one platform. Every model is RF, every model does print to cut.
MIRA 6X
$6,999
As low as $144/mo
Laser power
40W RF
Work area
23.6 × 11.8 in
Cameras
1 lid + 1 CCD
Cooling
Air cooled
Print to cut
Yes
Shipping
$680
MIRA 9X
$9,999
As low as $205/mo
Laser power
75W RF
Work area
35.4 × 17.7 in
Cameras
2 lid + 1 CCD
Cooling
Water + air
Print to cut
Yes
Shipping
$980
YOU'RE VIEWING
Buy It Now
MIRA X
$17,999
As low as $370/mo
Laser power
100W / 150W RF
Work area
39.4 × 23.6 in
Cameras
2 lid + 1 CCD
Cooling
Compressor chiller
Print to cut
Yes
Shipping
$1,520
MIRA 6X
Working area (X × Y)
23.62 × 11.81 in
Laser type
40W RF Metal Laser Tube
Product dimensions
33.46 × 20.87 × 13.78 in
(850 × 530 × 350 mm)
Net weight
125.66 lb (57 kg)
$6,999
As low as $144/mo
View MIRA 6XMIRA 9X
Working area (X × Y)
35.43 × 17.72 in
Laser type
75W RF Metal Laser Tube
Product dimensions
45.67 × 27.17 × 16.54 in
(1160 × 690 × 420 mm)
Net weight
185.20 lb (84 kg)
$9,999
As low as $205/mo
View MIRA 9X
YOU'RE VIEWING
MIRA X
Working area (X × Y)
39.37 × 23.62 in
Laser type
100W / 150W RF Metal Laser Tube
Product dimensions
52.80 × 37.40 × 20.87 in
(1341 × 950 × 530 mm)
Net weight
533.52 lb (242 kg)
$17,999
As low as $370/mo
Buy It NowNeed a full sheet? Nova and Super Nova large-format machines take work areas up to 63 × 39 in.
Explore large-format lasers
In the Box
Everything you need to start cutting
- Knife blade worktable
- Two 13 MP lid cameras
- Honeycomb worktable
- 5 MP CCD camera
- Built-in compressor chiller
- Touchless ultrasonic autofocus
- 190W exhaust fan
- 2.5 in focusing lens
- 60W air pump
- EZMaker software
2-year warranty
US based, covering the machine, electronics and laser tube.
US support
Sales, support and parts from our US team.
Freight delivery
$1,520 freight shipping to your door.
Specifications
MIRA X full specs
Processing capacity
Laser type
150W RF metal laser tube
Processing mode
Laser cutting, laser engraving
Work area (X × Y)
39.37 × 23.62 in (1000 × 600 mm)
Z-axis travel
7.09 in (180 mm)
Max engraving speed
3,000 mm/s
Max acceleration
8G
Minimum text size
2.5 pt
Max lift load
77.16 lb (35 kg)
Pass-through
Four sides. Front/rear 2.76 in (70 mm), sides 7.09 in (180 mm)
Transmission
X-axis synchronous belt, Y-axis dual ball screws
Exhaust fan
190W, built in
Air pump
60W
Cooling
Built-in compressor chiller
Frame
Lightweight aluminum alloy
Software
Control panel
Touchscreen
Software
EZMaker, RDWorks; LightBurn compatible (licensed separately)
Operating systems
Windows and macOS
Design software
CorelDRAW, Illustrator, AutoCAD
File formats
SVG, DXF, AI, PLT, PDF, BMP, JPEG, JPG, PNG
Wi-Fi
Yes
Red-light positioning
Yes
Operation and cameras
Autofocus
Touchless ultrasonic autofocus
Lid preview cameras
2 × 13MP
CCD camera
1 × 5MP
Electromagnetic lock
Yes
Magnetic lens mount
Yes
XY-axis dust protection
Yes
Work status light
Yes
Worktables
Knife blade and honeycomb, both included
Optics
Focusing lens
2.5 in standard; 3.0 in and 5.0 in optional
Reflective mirrors
Ø25 × 3
Combiner mirror
Ø25 × 1
Protective lens
Ø20 × 1
Safety and general
Laser safety class
Class 1
Door-open protection
Yes
Water-flow protection
Yes
Voltage
110V / 220V
Total machine power
2,900W
Machine dimensions
52.80 × 37.40 × 20.87 in (1341 × 950 × 530 mm)
Net weight
533.52 lb (242 kg)
Rotary attachment
Optional
Talk to an expert
Not sure the MIRA X is the right fit?
Book a free 20-minute Laser Fit Call. Tell us what you make and how much of it, and we'll tell you honestly which machine fits, including when a smaller one will do.
Steven H.
Your AEON Laser Pro
Common Questions
MIRA X questions, answered
What can the MIRA X cut and engrave?
Wood, acrylic, leather, paper and cardboard, rubber and fabric, plus surface engraving on glass and stone. Like any CO₂ laser it does not cut metal.
What's the difference between an RF tube and a glass tube?
An RF metal tube pulses faster and produces a thinner beam, so engraving is sharper and fine text holds down to 2.5 pt. It is rated for about 20,000 hours, roughly twice a typical DC glass tube, and when the gas runs out it can be refilled instead of replaced.
How does print to cut work?
Add registration marks to your design and print it. Load the sheet on the bed. The two lid cameras locate the marks, the CCD camera on the laser head pinpoints each one, and the laser cuts on the line.
Does the MIRA X work with LightBurn?
Yes. The MIRA X is LightBurn compatible (LightBurn is licensed separately). It also runs EZMaker for VisionFlow print to cut and batch fill, and accepts SVG, DXF, AI, PLT, PDF, BMP, JPG and PNG files.
Is it safe to use indoors?
The MIRA X is a Class 1 fully enclosed laser with door-open and water-flow protection and an electromagnetic lid lock. The built-in 190W exhaust should vent outside or into a suitable fume extractor. Proper ventilation and safe material handling are still required.
What warranty comes with the MIRA X?
Two years, US based, covering the machine, the electronics and major components including the laser tube.
Can it engrave tumblers?
Yes. Use the optional HexaTurn multi-position rotary, designed for the MIRA X, or connect a compatible third-party rotary through the rotary port.
MIRA X
Industrial RF power, sized for your shop.
$17,999
As low as $370/mo
