OUT OF STOCK

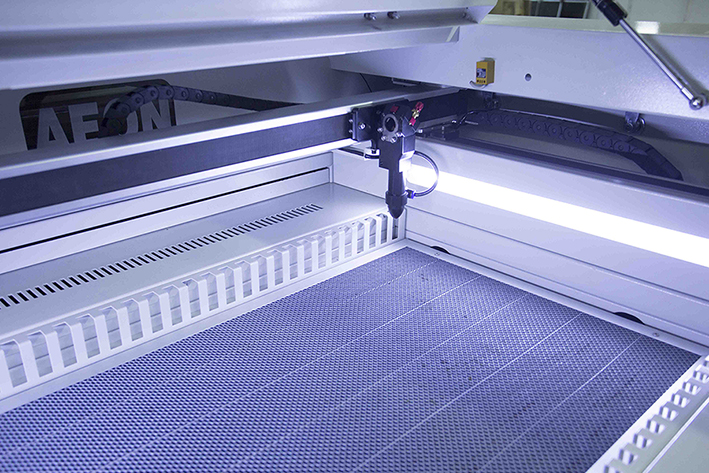

The Nova series can also be broken down into two parts so that is can fit through tight hallways and standard doorways. The motorized work table now incorporates both the blade and honeycomb table so that auto focus can be used with either option. There are also small perks, such as an auto sensing rotary port, conveniently located on the inside of the machine, and a scrap collection drawer at the base of the machine for those messy cutting applications. The Aeon R&D team really thought of everything. All that’s left to do is plug it in and get to work!
High-speed linear rails help to harness the full cutting potential that comes with having a larger laser tube; while traversing when the laser is off can reach speeds of up to 1500 mm/sec, resulting in a significant reduction in cycle times.
Utilizing the drive belts to protect the linear rails and bearing blocks helps to eliminate 99% of the accumulation of dust and debris, practically eliminating any need for maintenance and frequent cleaning that is typically required to maintain steady operation.
Aeon’s signature clean pack technology has taken the next step in the evolutionary process. Not only are the linear rails and bearing blocks enclosed (as in previous models), but protective curtains on the left and right side rails now prevent unwanted particles from spreading beyond your work area. Enjoy greater peace of mind with a laser system you can truly rely on.
Thanks to Aeon’s lightweight laser head design and high speed digital stepper motors, the Nova can achieve 1.8G of acceleration resulting in scan speeds of up to 1200 mm/sec and cutting speeds of up to 300 mm/sec.
Installing a large format laser in a confined space, has never been more practical. Enjoy a clutter free workspace with a built-in 5000 or 5200 water chiller, exhaust fan and air pump. All components are still easily accessible and can be removed for routine maintenance.
The newly designed laser head features an integrated auto focusing mechanism that is lightweight and a whole lot more reliable. It’s encapsulated right inside the nozzle, to shield it from smoke and debris. Say goodbye to collisions and gouged material.
Quickly recall or layout simple designs with the included RDWorks software or upgrade to LightBurn for an enhanced user experience. For those already familiar with graphic design, simply import graphics directly from CorelDraw, AutoCAD and Illustrator via the handy plugins.
Easily send jobs from your PC or Mac via USB, Ethernet or WiFi. There is even 256 MB of onboard memory built right into the controller for storing popular jobs, or you can even run programs straight from a USB Flash Drive.
Another industry first is the all new redesigned Ruida controller, which brings commonly used functions right to the surface, for increased setup times and overall ease of use. You can even monitor amperage (mA) and water temperature right from the display screen.
Say goodbye to excessive soot buildup on your material and in your laser cabinet. A series of tiny fans are now used to force feed makeup air into the laser cabinet, which inturn improves how quickly smoke is evacuated from the system. The more air you move across the work table, the cleaner the results, which means less time scrubbing for you.
Cleanup is a breeze with a newly integrated scrap drawer. All of your cut pieces now fall into a conveniently located compartment below, which can be easily emptied to prevent scrap pieces from piling up and becoming a fire hazard.
| Model | Nova 10 | Nova 14 | Nova 16 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Working Area | 27 9/16″ x 39 3/8″ 700mm x 1000mm |
35 7/16″ x 55 1/8″ 900mm x 1400mm |
39 3/8″ x 63 ″ 1000mm x 1600mm |
|||||||||
| Machine Size | 47 5/8″ x 59 1/16″ x 40 11/32″ 1210mm x 1500mm x 1025mm |
55 1/2″ x 74 13/16″ x 40 11/32″ 1410mm x 1900mm x 1025mm |
59 7/16″ x 82 11/16″ x 40 11/32″ 1510mm x 2100mm x 1025mm |
|||||||||
| Machine Weight | 1000 lb (450kg) | 1150 lb (520kg) | 1370 lb (620kg) | |||||||||
| Machine Packing Weight | 1200 lb (540kg) | 1350 lb (610kg) | 1570 lb (710kg) | |||||||||
| Crate Packing Size | 51 5/8″ x 63 1/16″ x 44 11/32″ 1310mm x 1600mm x 1125mm |
59 1/2″ x 78 13/16″ x 44 11/32″ 1510mm x 2000mm x 1125mm |
63 7/16″ x 86 11/16″ x 44 11/32″ 1610mm x 2200mm x 1125mm |
|||||||||
| Laser Tube | Reci W2/W4/W6 Premium CO2 Glass Tube | |||||||||||
| Input Voltage | 120V AC Single Phase | |||||||||||
| Frequency | 60 Hz | |||||||||||
| Engraving Speed | 0-1200mm/second | |||||||||||
| Cutting Speed | 0-300mm/Second | |||||||||||
| Locating Precision | <=0.01mm | |||||||||||
| Air Assist | 105W Built-In Air Pump | |||||||||||
| Cooling | Vapor Compression, built-in 5000 Water Chiller | Vapor Compression, built-in 5200 Water Chiller | Vapor Compression, built-in 5200 Water Chiller | |||||||||
| Blower | 330W Built-In Exhaust Fan | |||||||||||
| Engraving Software | LightBurn, RDWorks | |||||||||||
| File Formats Supported | AI, PDF, SC, DXF, HPGL, PLT, RD, SCPRO2, SVG, LBRN, BMP, JPG, JPEG, PNG, GIF, TIF, TIFF, TGA | |||||||||||
| Compatible Software | CorelDraw, Photoshop, AutoCAD, InkScape, or any software that can export into the supported file formats | |||||||||||
| Worktable | Honeycomb + Blade table | |||||||||||
| Red Dot Positioning | Beam combiner | |||||||||||
| Built-in WIFI | Included | |||||||||||
| Auto Focus | Included | |||||||||||
| Add-Ons | 3-Jaw Chuck Rotary, 4 Wheel Roller Rotary, Fume Extractor | |||||||||||
| Warranty | All Aeon lasers are backed by the factory warranty and our Lifeline Plus care plan, which includes remote startup training and unlimited US based phone support. Extended warranties are also available. | |||||||||||
Handle just about any type of drinkware with our USA made roto rotary. The dual height adjustable sides are perfect for positioning items with extreme tapers, while the spring-loaded third wheel keeps your cups from walking and from flying off the rollers.
The more precise way of handling cylindrical items is with this 3-jaw rotary chuck. Clamp any item up to 3.93” (100mm) in diameter and rotate it for 360 degree engraving.
The PiBurn Grip is a chuck-style rotary attachment for laser engraving everything from rings and other smaller items to dog bowls and delicate glassware. The cup will not slip, so you can engrave in both directions, not just line by line.
The PiBurn rotary allows you to engrave cylindrical objects such as cups, tumblers, glasses, bottles, and champagne flutes with ease and precision. PiBurn comes fully assembled with magnetic feet.
Fume Extractor w/ 1-blower and high capacity 3 stage HEPA filtration. Extracts, filters and recirculates clean air into the workspace. Dimensions: 38"(H) x 15"(W) x 31"(D) Recommended for NOVA 10 and NOVA 14 (light duty only).
Fume Extractor w/ 1-blower and high capacity 3 stage HEPA filtration. Extracts, filters and recirculates clean air into the workspace. Dimensions: 38"(H) x 15"(W) x 31"(D) Recommended for NOVA 14 and NOVA 16.
Get a bird's eye view of your workspace right on your computer screen for quick and accurate placement of your design, so that you don’t have to measure (Lightburn upgrade required).
Programming is a breeze with our advanced DSP digital control system or an optional wireless remote that puts all of the controls right in the palm of your hand.
One (1) Additional Year of Warranty Service added to the Manufacturer's Warranty for most Machine Parts; Excludes Mirrors, Lens, and some Laser Tubes. See Standard and Extended Equipment Warranty Periods table for details.
Two (2) Additional Years of Warranty Service added to the Manufacturer's Warranty for most Machine Parts; Excludes Mirrors, Lens, and some Laser Tubes. See Standard and Extended Equipment Warranty Periods table for details.
Protect your eyes from infrared light radiation that can compromise your vision over time. Glasses are designed for use with CO2 lasers (10.6um) only.
Get 1 or 2 Years of Warranty Service added to the Manufacturer's Warranty for most Machine Parts; excludes Mirrors, Lens, and some Laser Tubes.
