OUT OF STOCK: MIRA7 LOW STOCK: MIRA9 READY TO SHIP
The latest Mira 7 and Mira 9 professional benchtop CO2 lasers include the safety of a fully interlocked case and keyed ignition, thus transforming the Mira into a Class 1 laser, the highest safety rating possible. The new design preserves the best features from the previous generation, such as the Clean Pack Design and cutting edge high speeds, while adding some finishing touches, like a fire resistant tempered glass lid, gas shocks and rubber seals.

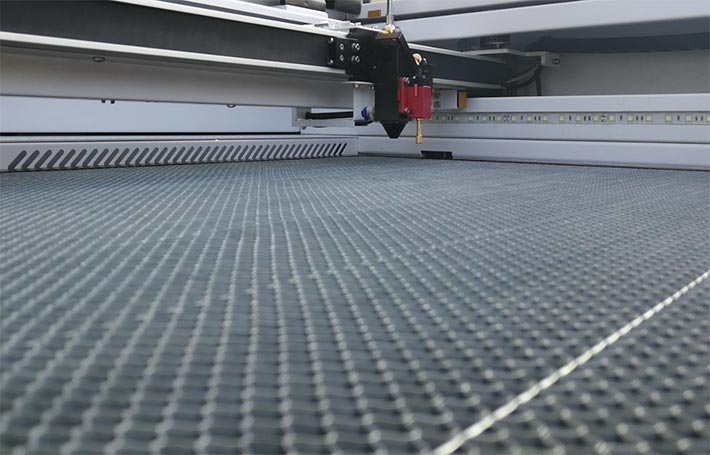

Great emphasis was placed on improving the cutting capabilities and the various components required to do so. The entire work table has been overhauled and replaced with a motorized blade table that is fitted with a downdraft exhaust system similar to what you would find in our Nova Pro Series. The exhaust fan and air assist pump have also been upgraded to help with improving airflow and increasing cutting efficiency. Equipped with a built-in fan cooled water chiller (Mira 7) or a vapor compression water chiller (Mira 9), the Mira Pro models are ready to take your laser engraving and cutting abilities to the next level.
Thanks to an all-in-one design which eliminates the need for an ancillary water cooling system, exhaust fan and air assist pump, the Mira series occupies a much smaller footprint, making it ideal for installations in confined quarters.
High-speed linear rails help to harness the full cutting potential that comes with having a larger laser tube; while traversing when the laser is off can reach speeds of up to 1500 mm/sec, resulting in a significant reduction in cycle times.
Utilizing the drive belts to protect the linear rails and bearing blocks helps to eliminate 99% of the accumulation of dust and debris, practically eliminating any need for maintenance and frequent cleaning that is typically required to maintain steady operation.
Our unique linear motion design utilizes the drive belts themselves to enclose the linear rails and bearing blocks so that they are protected from smoke and debris and can continue to operate without frequent maintenance or repairs.
Thanks to Aeon’s featherweight laser head design and high speed digital stepper motors, the Mira can achieve 5G of acceleration resulting in scan speeds of up to 1200 mm/sec and cutting speeds of up to 680 mm/sec.
If space is of concern, you’ll be pleased to know that Aeon is the first in the laser industry to offer an all-in-one solution comprised of an integrated water cooling system, exhaust fan and air assist pump so that no extra space is needed for ancillary components.
Engrave cylindrical items with either a rotary chuck or a roller rotary and enjoy a painless transition between flat engraving and rotary engraving, thanks to an auto sensing rotary port.
Easily send jobs from your PC or Mac via USB, Ethernet or WiFi. There is even 256 MB of onboard memory built right into the controller for storing popular jobs, or you can even run programs straight from a USB Flash Drive.
Quickly recall or layout simple designs with the included RDWorks software or upgrade to LightBurn for an enhanced user experience. For those already familiar with graphic design, simply import graphics directly from CorelDraw, AutoCAD and Illustrator via the handy plugins.
Mirror alignment has never been easier thanks to an inline beam combiner that also serves as an accurate red dot pointer. This visual aid eliminates any guesswork by allowing you to place items inside the machine and quickly position them for accuracy.
| Model | MIRA 7 | MIRA 9 |
|---|---|---|
| Working Area | 17 3/4″ x 27 1/2″ | 23 5/8″ x 35 1/2″ |
| Machine Size | 43 1/2″ x 34 3/4″ x 20 5/8″ | 51 3/8″ x 40 3/4″ x 21 1/8″ |
| Machine Weight | 392 lbs. (178kg) | 502 lbs. (228kg) |
| Machine Packing Weight | 450 lb | 560 lb |
| Packing Size | 48″ x 38 1/2″ x 28 1/2″ | 68″ x 44 1/4″ x 29″ |
| Laser Tube | 40w or 60w Premium CO2 Glass Tube | W2 (90w) or W4 (100w) Premium CO2 Glass Tube |
| Tube Extension | n/a | MIRA 9 W2 (90w) lasers come with a 4” tube extension. MIRA 9 W4 (100w) come with a 12” tube extension. |
| Cooling | Fan Cooled (3000) Water Chiller | Vapor Compression (5000) Water Chiller |
| Amperage | 15A Dedicated Circuit | 20A Dedicated Circuit |
| Input Voltage | 120V AC Single Phase | |
| Frequency | 60 Hz | |
| Rated Power | 1200W | |
| Z-Axis Travel | 5-⅞” (150mm) | |
| Air Assist | 105W Built-In Air Pump | |
| Blower | 330W Built-In Exhaust Fan | |
| Engraving Speed | 0-1200mm/second | |
| Cutting Speed | 0-680mm/second | |
| Cutting Thickness | 0-20mm (depends on different materials) | |
| Max Acceleration Speed | 5G | |
| Laser Optical Control | 1-100% Set by software | |
| Minimum Engraving Size | Minimum Font Size 1.0mm x 1.0mm | |
| Max Scanning Precision | 4000DPI | |
| Locating Precision | <=0.01mm | |
| Worktable | Honeycomb + Blade | |
| Red Dot Positioning | Combiner Type | |
| Built-in WIFI | Included | |
| Auto Focus | Included | |
| Engraving Software | LightBurn, RD works | |
| File Formats Supported | AI, PDF, SC, DXF, HPGL, PLT, RD, SCPRO2, SVG, LBRN, BMP, JPG, JPEG, PNG, GIF, TIF, TIFF, TGA | |
| Compatible Software | CorelDraw, Photoshop, AutoCAD, InkScape, or any software that can export into the supported file formats | |
| Add-Ons | Roller Rotary, Rotary Chuck, Stand, Fume Extractor, Remote Control, Camera | |
| Warranty | All Aeon lasers are backed by a 2 year factory warranty and our Lifeline Plus care plan, which includes remote startup training and unlimited US based phone support. Extended warranties are also available. | |
Expand your capabilities with this versatile roller rotary device. Perfect for engraving bottles, champagne flutes, wine glasses, etc.
The more precise way of handling cylindrical items is with this 3 jaw rotary chuck. Clamp any item up to 3.15" (80mm) in diameter with Mira 7 or Mira 9, and rotate it for 360 degree engraving
The PiBurn Grip is a chuck-style rotary attachment for laser engraving everything from rings and other smaller items to dog bowls and delicate glassware. The cup will not slip, so you can engrave in both directions, not just line by line.
The PiBurn rotary allows you to engrave cylindrical objects such as cups, tumblers, glasses, bottles, and champagne flutes with ease and precision. PiBurn comes fully assembled with magnetic feet.
The RotoBoss Low Roller is a low profile rotary attachment for smaller cabinet lasers offering a large range of engraving options not previously available with current rotaries on the market today.

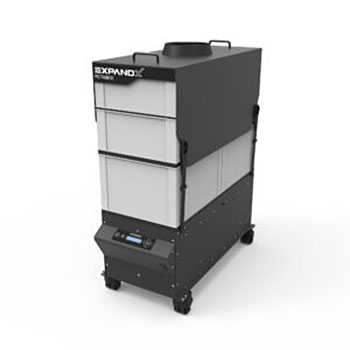

For light duty. Fume Extractor w/ 1-blower and high capacity 3 stage HEPA filtration. Extracts, filters and recirculates clean air into the workspace. 29"(H) x 15"(W) x 21"(D) Recommended for MIRA 7 (light duty only).
For heavy duty. Fume Extractor w/ 1-blower and high capacity 3 stage HEPA filtration. Extracts, filters and recirculates clean air into the workspace. 38"(H) x 15"(W) x 31"(D) Recommended for MIRA 7 (heavy duty only) and MIRA 9 (light duty only).
Fume Extractor w/ 1-blower and high capacity 3 stage HEPA filtration. Extracts, filters and recirculates clean air into the workspace. Dimensions: 38"(H) x 15"(W) x 31"(D) Recommended for MIRA 9 (heavy duty only).
Get a bird's eye view of your workspace right on your computer screen for quick and accurate placement of your design, so that you don’t have to measure (LightBurn upgrade required).
Protect your eyes from infrared light radiation that can compromise your vision over time. Glasses are designed for use with CO2 lasers (10.6um) only.
Not just any old table will do. The R&D team put their signature on this sleek modern looking stand that is also on wheels for added convenience.
Programming is a breeze with our advanced DSP digital control system or an optional wireless remote that puts all of the controls right in the palm of your hand.
One (1) Additional Year of Warranty Service added to the Manufacturer's Warranty for most Machine Parts; Excludes Mirrors, Lens, and some Laser Tubes. See Standard and Extended Equipment Warranty Periods table for details.
Two (2) Additional Years of Warranty Service added to the Manufacturer's Warranty for most Machine Parts; Excludes Mirrors, Lens, and some Laser Tubes. See Standard and Extended Equipment Warranty Periods table for details.
Get 1 or 2 Years of Warranty Service added to the Manufacturer's Warranty for most Machine Parts; excludes Mirrors, Lens, and some Laser Tubes.
