Aeon Mira 5 CO2 Desktop Laser Cutting Machine front view

Aeon Mira 5 CO2 Desktop Laser Cutting Machine front view with lid open

Aeon Mira 5 CO2 Desktop Laser Cutting Machine birds eye view

Aeon Mira 5 CO2 Desktop Laser Cutting Machine side view

MIRA CO2 Desktop Laser Cutting Machine MIRA 5

OUT OF STOCK

Clean Pack Design
High Speed Digital Step Motors
Built-in Water Cooling System, Exhaust Fan and Air Assist Pump
Standard Honeycomb Table
Super fast engraving speeds of up to 1200mm/s
Z-depth up to 100mm

See New Model

This innovative new design concept was designed by Aeon from the ground up. The Aeon Mira 5 emanates a striking and professional appearance. The aim was to make the machine relatively compact so that is can be installed just about anywhere, without compromising the integrity of the machine by filling it with plastic components. This full metal jacket is rigid enough to withstand the abuse of continuous usage, yet light enough to still be transported easily from one location to the next.

The Aeon Mira 5 features roughly a 11.75” x 19.75” (300mm x 500mm) workspace and comes standard with a motorized table capable of a 4-3/4” (100mm) range of motion to aid with incorporating bulkier items or a rotary device. Couple that with a hinged pass- through for introducing oversized items, along with a honeycomb table for use with cutting applications, and you’ll quickly see why the Mira 5 is the perfect solution for a wide variety of use cases.

Clean Pack Design

Our unique linear motion design utilizes the drive belts themselves to enclose the linear rails and bearing blocks so that they are protected from smoke and debris and can continue to operate without frequent maintenance or repairs.

Fastest in its Class

Thanks to Aeon’s featherweight laser head design and high speed digital stepper motors, the Mira can achieve 5G of acceleration resulting in scan speeds of up to 1200 mm/sec and cutting speeds of up to 680 mm/sec.

All-In-One System

If space is of concern, you’ll be pleased to know that Aeon is the first in the laser industry to offer an all-In-one solution comprised of an integrated water cooling system, exhaust fan and air assist pump so that no extra space is needed for ancillary components.

Smart Rotary Device

Engrave cylindrical items with either a rotary chuck or a roller rotary and enjoy a painless transition between flat engraving and rotary engraving, thanks to an auto sensing rotary port.

Multiple Interfaces

Easily send jobs from your PC or Mac via USB, Ethernet or WiFi. There is even 256 MB of onboard memory built right into the controller for storing popular jobs, or you can even run programs straight from a USB Flash Drive.

Software

Quickly recall or layout simple designs with the included RDWorks software or upgrade to LightBurn for an enhanced user experience. For those already familiar with graphic design, simply import graphics directly from CorelDraw, AutoCAD and Illustrator via the handy plugins.

Red Dot Pointer

Mirror alignment has never been easier thanks to an inline beam combiner that also serves as an accurate red dot pointer. This visual aid eliminates any guesswork by allowing you to place items inside the machine and quickly position them for accuracy.

Model	MIRA 5
Working Area	11 3/4″ x 19 3/4″
Machine Size	35 1/2″ x 28″ x 16 1/2″
Machine Weight	265 lbs. (120kg)
Machine Packing Weight	320 lb
Packing Size	39 3/8″ x 31 1/2″ x 22″
Laser Tube	40w Premium CO2 Glass Tube
Z-Axis Travel	4-¾” (120mm)
Air Assist	18W Built-In Air Pump
Cooling	34W Built-In Water Pump
Blower	45W Built-In Blower
Input Voltage	120V AC Single Phase
Amperage	15A Dedicated Circuit
Frequency	60 Hz
Rated Power	1200W
Engraving Speed	0-1200mm/second
Cutting Speed	0-680mm/second
Cutting Thickness	0-20mm (depends on different materials)
Max Acceleration Speed	5G
Laser Optical Control	1-100% Set by software
Minimum Engraving Size	Minimum Font Size 1.0mm x 1.0mm
Max Scanning Precision	4000DPI
Locating Precision	<=0.01mm
Worktable	Honeycomb
Red Dot Positioning	Combiner Type
Built-in WIFI	Included
Auto Focus	Included
Engraving Software	LightBurn, RD works
File Formats Supported	AI, PDF, SC, DXF, HPGL, PLT, RD, SCPRO2, SVG, LBRN, BMP, JPG, JPEG, PNG, GIF, TIF, TIFF, TGA
Compatible Software	CorelDraw, Photoshop, AutoCAD, InkScape, or any software that can export into the supported file formats
Add-Ons	Roller Rotary, Rotary Chuck, Stand, Fume Extractor, Remote Control
Warranty	All Aeon lasers are backed by a 2 year factory warranty and our Lifeline Plus care plan, which includes remote startup training and unlimited US based phone support. Extended warranties are also available.

Graphic showing the dimensions of the MIRA 5 laser, crate size, and weight info

front view of bed and laser head on the Aeon Mira CO2 Desktop Laser Cutting Machine

view of the control panel and laser bed on the Aeon Mira CO2 Desktop Laser Cutting Machine

close up of laser bed on the Aeon Mira CO2 Desktop Laser Cutting Machine

right panel and rear panel on the Aeon Mira CO2 Desktop Laser Cutting Machine

rear panel on the Aeon Mira CO2 Desktop Laser Cutting Machine

right panel closed, on the Aeon Mira CO2 Desktop Laser Cutting Machine

right panel opened, on the Aeon Mira CO2 Desktop Laser Cutting Machine

left panel closed, on the Aeon Mira CO2 Desktop Laser Cutting Machine

left panel opened, on the Aeon Mira CO2 Desktop Laser Cutting Machine

Smart Roller Rotary

Expand your capabilities with this versatile roller rotary device. Perfect for engraving bottles, champagne flutes, wine glasses, etc.

Rotary Chuck

The more precise way of handling cylindrical items is with this 3 jaw rotary chuck. Clamp any item up to 2.55” (65mm) in diameter with the Mira 5, and rotate it for 360 degree engraving

Filtrabox Micro Fume Extractor

For light duty. Fume Extractor w/ 1-micro blower and 3 stage HEPA filtration. Extracts, filters and recirculates clean air into the workspace. Designed to fit underneath work tables and desks. 26"(H) x 10"(W), 17"(D)

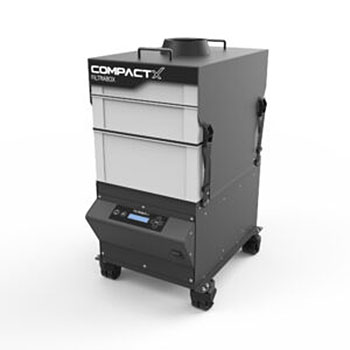

Filtrabox Compact X Fume Extractor

For heavy duty. Fume Extractor w/ 1-blower and high capacity 3 stage HEPA filtration. Extracts, filters and recirculates clean air into the workspace. 29"(H) x 15"(W) x 21"(D)

Remote Control

Programming is a breeze with our advanced DSP digital control system or an optional wireless remote that puts all of the controls right in the palm of your hand.

Stand

Not just any old table will do. The R&D team put their signature on this sleek modern looking stand that is also on wheels for added convenience.

Extended Warranty - Tier 1

One (1) Additional Year of Warranty Service added to the Manufacturer's Warranty for most Machine Parts; Excludes Mirrors, Lens, and some Laser Tubes. See Standard and Extended Equipment Warranty Periods table for details.

Extended Warranty - Tier 2

Two (2) Additional Years of Warranty Service added to the Manufacturer's Warranty for most Machine Parts; Excludes Mirrors, Lens, and some Laser Tubes. See Standard and Extended Equipment Warranty Periods table for details.
